OOPic's 8-pin EEPROM Sockets
8-pin EEPROM socket
E0 & E1 on OOPic-S
E0 on OOPic R & C

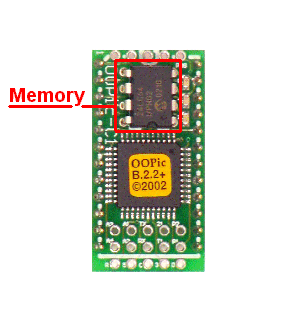

Note that on the OOPic-C,
the socket is embedded in the board.
OOPic-C

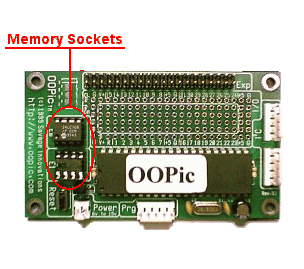

OOPic-S

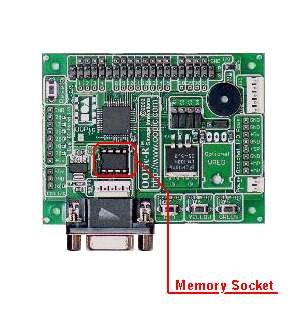

OOPic-R
Pin
Name
Function
Pin
Name
Function
1
A0
Address 0
8
+5
+5 Volt reference
2
A1
Address 0
7
N/C
3
A2
Address 0
6
ESCL
EEPROM I2C Serial Clock
4
GND
0 Volt reference
5
ESDA
EEPROM I2C Serial Data
OOPic's 8-pin EEPROM Sockets
E0 & E1 on
OOPic-S
