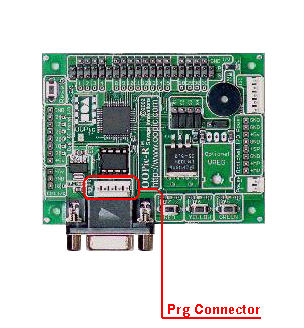

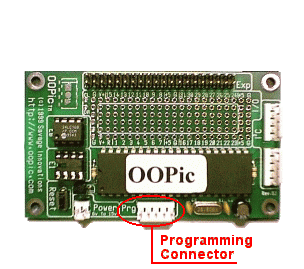

OOPic's 5-pin Programming Connector
The Programming Cable's connection is available at the 5-pin programming connector.
It provides the following connections.
  • I2C EEPROMs
  • +5 Volt Power & Ground.
  • Reset Line.
5 pin male(At the OOPic)
5 pin female(At the cable)

The connector is a 2-pin, .100 inch spacing, polarized, locking connector manufactured by AMP,  Part# 640456-5.
A suitable polarized, locking header is manufactured by Waldom, Part#22-01-3057
Digikey carries both of these parts.
The following table shows the pin assignments for the 5-pin programming connector.
PinNameDirDescriptionFunction
1LSDL-Local I2C Serial DataI2C Serial Data generated by OOPic programmer when reading / writing the EEPROMs.
2GND---Ground0 Volt reference
3LSCALocal I2C Serial ClockI2C Serial Clock generated by OOPic programmer when reading / writing the EEPROMs.
4+5+5 Volt Power+5 Volt reference
5RESETReset (Active Low)Pulled low to reset the OOPic when programming the Program EEPROM.
